Model Number:CP205
Material:96% aluminum oxide sensor core
Accuracy:±0.5%FS

Application:Universal model
Output:0-5V
Material:Alumina, fiberglass, ceramics
Work temperature:-40~85℃
Power consumption(mA):2.5(TYP)

Model Number:CP200

Material:Ceramic material

Accuracy:±0.5%FS

Output signal:0-5V

Pressure range:0-20bar

Power consumption(mA):2.5(TYP)

Load (Ω):>10K

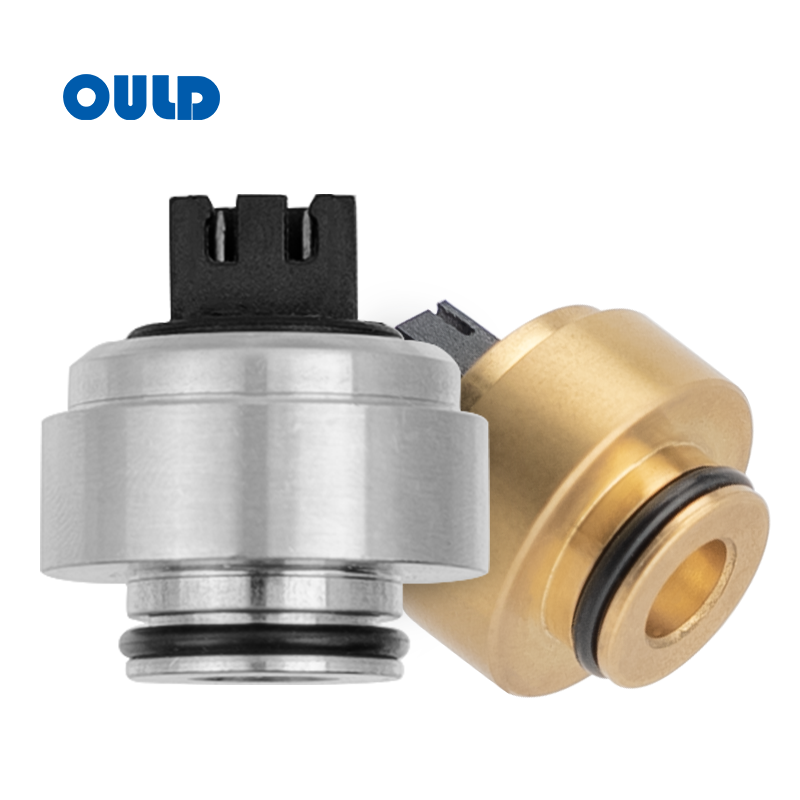

Product name:PT-850
Weight: 36.7g
Diameter: 2.5cm
Height: 2.7-2.8cm
Overload pressure: 200%FS
Pressure type: gauge pressure, sealed gauge pressure
Power supply voltage DC: 3-5.5V
Output signal: 0-5V

Model Number：PT-504A
Pressure range：0~50bar
Accuracy：0.5%FS
Process connection：G1/4, R1/4, etc
Electrical connection：Cable
Output signal：4-20mA/0-5V/HC/NTC 10K 3950
Power supply：11-36V/5V/11-36V/2.7-5.5V/0.33mA
Working temperature：-40~85℃
Overload pressure：200%FS
Waterproof：IP68
Temperature drift：0.03%FS/℃

Model Number:PT-407
Output signal:4~20mA/0-5V
Application:Air conditioner/refrigerator/freezer/water-cooled screw machine
Power supply:11-36V/3-5V

Process connection:Hirschmann GDM3009
Measuring medium:Liquid Gas Vapor
Material:304/316 Stainless Steel
Operating temperature:-40~85℃

Model Number:PT-409
Output signal:4~20mA/0-10V/0-5V/0.5~4.5V
Application:Wide Application Range
Power supply:11~36VDC
Process connection:Hirschmann GDM3009
Measuring medium:Liquid Gas Vapor
Keywords:4-20mA Pressure Transmitter sensor/Differential Pressure Transmitters
Material:304/316 Stainless Steel

Model Number：PT-406
Accuracy：0.5%FS
Process connection：G1/4, 7/16-20UNF, customized
Measuring medium：Liquid Gas Steam
Medium：Gas Liquid Compatible
Electrical connection：Aviation plug
Keywords：Pressure Transducer Pressure Sensor
Material：304/316 Stainless Steel
Signal Output：4-20mA 0.5-4.5VDC 0-5VDC 0-10VDC

Model Number:PT-401
Output signal:4~20mA/0-10V/0-5V/0.5~4.5V
Application:Air Conditioning Refrigeration
Accuracy:0.5%FS, 1%FS
Power supply:11~36VDC
Electrical connection:Packard Connector
Process connection:G1/4, 7/16-20UNF, customized
Pressure type:Gauge Pressure Absolute Pressure Sealed Pressure
Operating temperature:-40-85℃
Measured media:Oil Water Air Gas
Material:SS304/SS316

Model Number:PT-3051
Output signal:4~20mAdc
Product Name:Capacitive high-precision smart pressure transmitter
Pressure type:Gauge Pressure Absolute Pressure Sealed Pressure
Process connection:Flange pressure port 1/4-18NPT, joint pressure port 1/2-14NPT
Measuring medium:liquid, gas or vapor
Material:316 /304 Stainless Steel
Electrical connection:1/2-14NPT conduit with threaded end
Display:LCD Digital Display
Keywords:flange capacitive 3051pressure transmitter
Output:12V~45V

Model Number：PT-309
Pressure range：0~1Bar～100 BAR

Power supply：3-5V, 24V
Accuracy：0.5%FS 1%FS
Output signal：4~20mA/0.5-4.5V/0-10V
Process connection：G1/4, R1/4, etc.
Electrical connection：Hirschmann GDS-3009
Overload pressure：200%FS
Operating temperature：-40~85℃

Model Number：PT-307
Pressure range：0MPa~0.1MPa~4MPa

Power supply：12~36VDC
Accuracy：0.5%FS 1%FS
Output signal：4~20mA/0.5-4.5VDC
Process connection：G1/4, R1/4, etc
Electrical connection：Hirschmann GDS series
Overload pressure：200%FS
Operating temperature：-40~85℃

Model Number:PT-306
Material:Stainless steel
Accuracy:0.5%FS
Product name:Suitable for air compressor pressure sensor
Pressure type:Gauge Pressure Absolute Pressure Sealed Pressure
Output signal:0.5-4.5V / 0-5V / 4-20mA / 0-10V / I2c
Electrical connection:Aviation Plug
Process connection:M20*1.5 G1/4 R1/4 (or Customized)

Application:Water Oil Air Pressure Measurement
