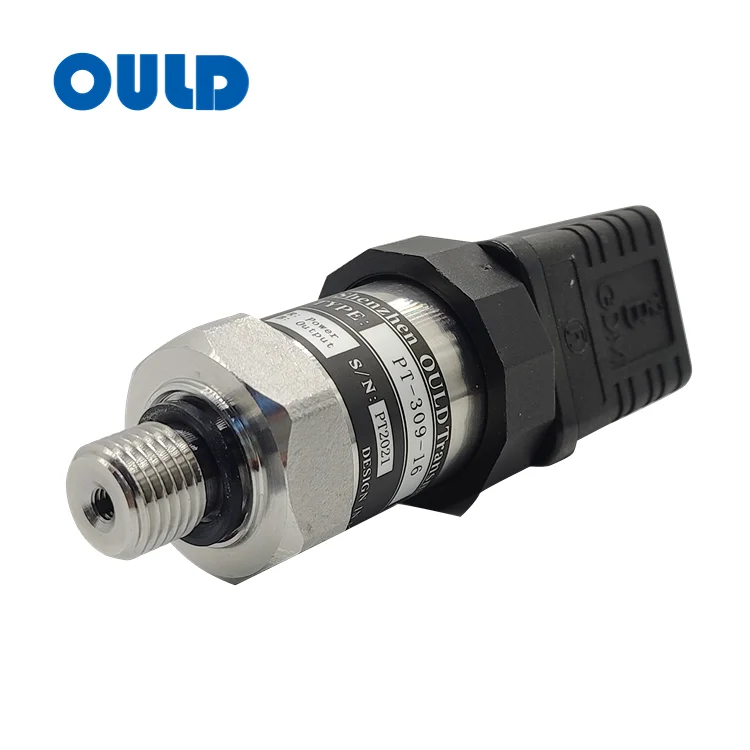

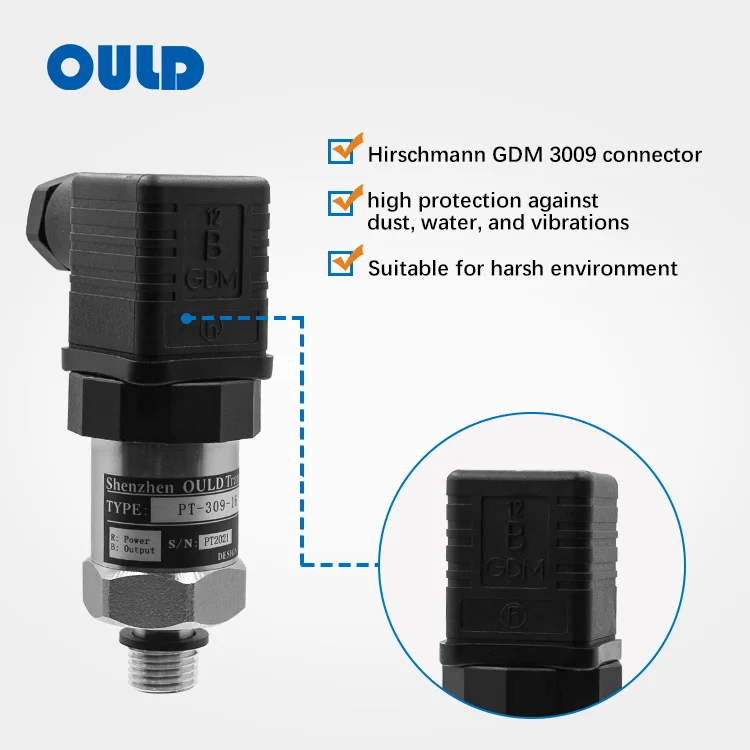

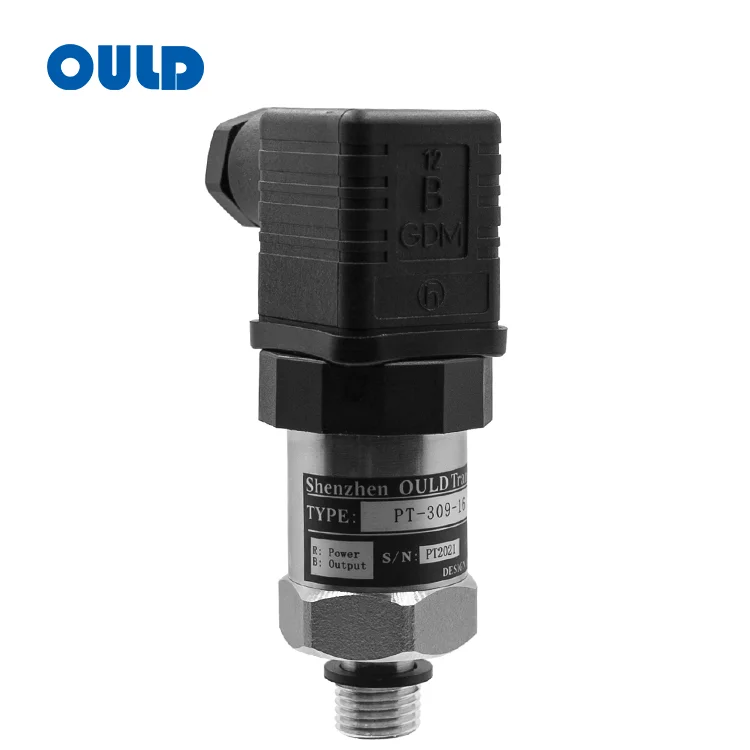

PT-309 compact pressure transmitter with Hirschmann GDM-3009 connector, stainless steel housing for industrial applications

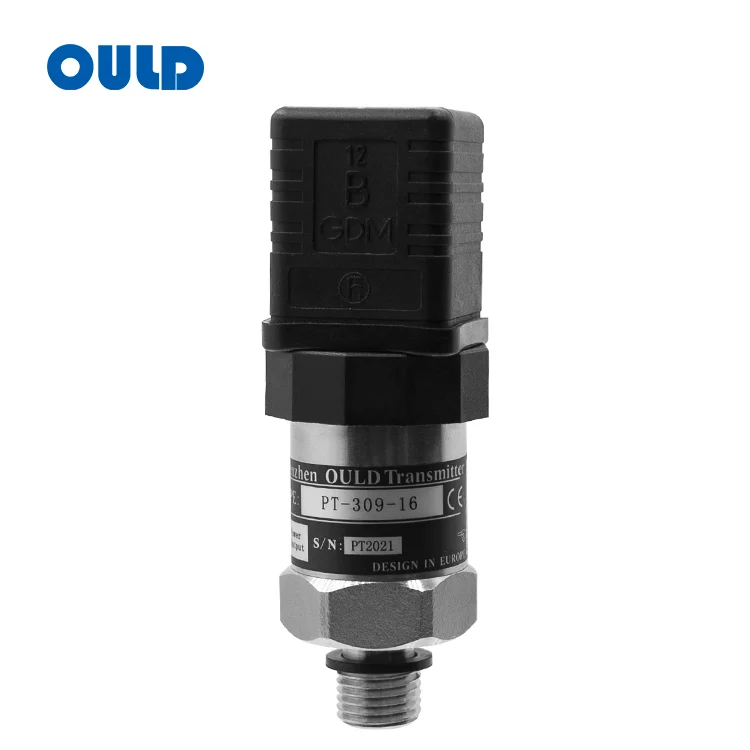

PT-309 compact pressure transmitter with Hirschmann GDM-3009 connector, stainless steel housing for industrial applications

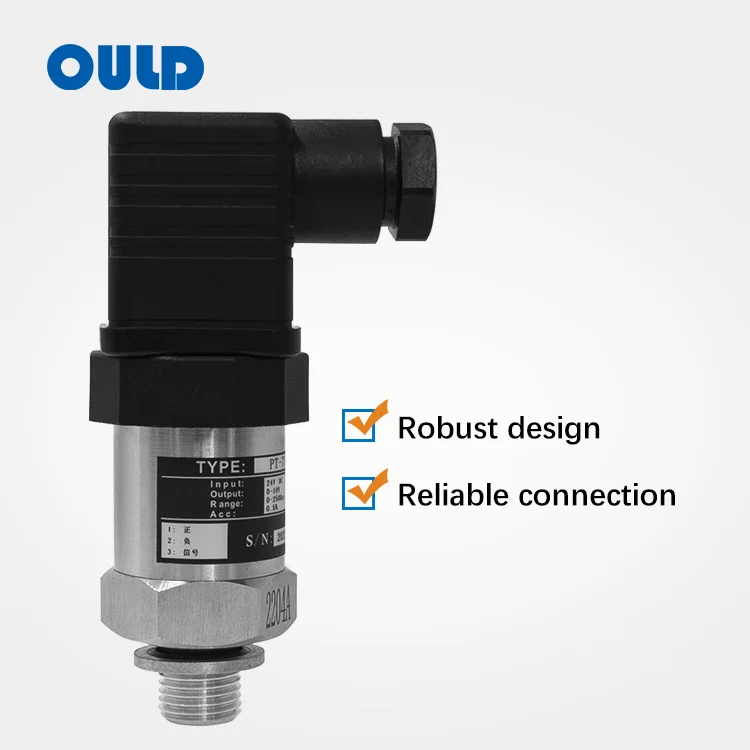

PT-309 compact pressure transmitter with Hirschmann GDM-3009 connector, stainless steel housing for industrial applications
PT-309 compact pressure transmitter with Hirschmann GDM-3009 connector, stainless steel housing for industrial applications

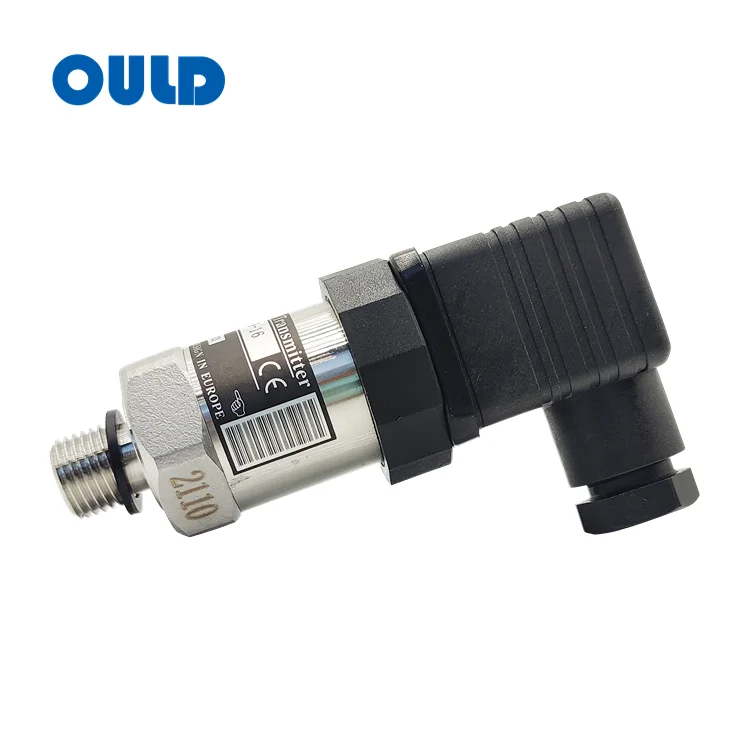

PT-309 compact pressure transmitter with Hirschmann GDM-3009 connector, stainless steel housing for industrial applications
PT-309 compact pressure transmitter with Hirschmann GDM-3009 connector, stainless steel housing for industrial applications

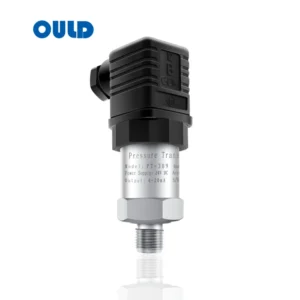

PT-309 compact pressure transmitter with Hirschmann GDM-3009 connector, stainless steel housing for industrial applications

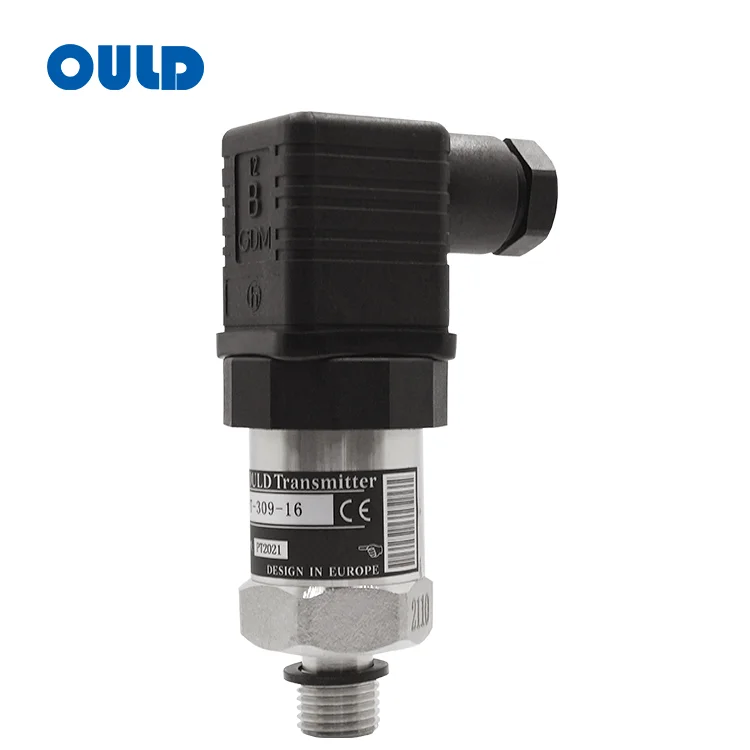

PT-309 compact pressure transmitter with Hirschmann GDM-3009 connector, stainless steel housing for industrial applications
PT-309 compact pressure transmitter with Hirschmann GDM-3009 connector, stainless steel housing for industrial applications
PT-309 compact pressure transmitter with Hirschmann GDM-3009 connector, stainless steel housing for industrial applications
Industrial Pressure Transmitter for Air Compressor | Stainless Steel Sensor 4-20mA PT-309

Compact Stainless Steel Pressure Sensor with High Stability for Industrial Automation Applications

Pressure Range
0MPa~0.1MPa~4MPa
Accuracy
±0.5% FS, ±1.0% FS
Output Signal
4~20mA(2/3wires), 0~10VDC, 0.5~4.5VDC, 1~5VDC
Process Connection
G1/4, R1/4, Custom
Electrical Connection
Hirschmann
Supply Voltage
3~5 VDC, 24 VDC, 10~36 VDC
Ordering & Supply
MOQ (Minimum Order Quantity)
1 pcs
Lead Time
7-15 working days (standard)
Supply Capacity
50,000 pcs / month
Customization
Range / Output / Thread / Material
Product Description
PT-309 compact pressure transmitter with Hirschmann GDM-3009 connector, stainless steel housing for industrial applications

PT-309 pressure transmitter adopts imported sensor core, stainless steel isolation type small structure, compact appearance, easy to install. With a wide range and a variety of output signals, this product has good stability in a wide range of temperature, widely used in air compressor and other fields. With CE certification, there are a variety of different specifications to choose, it also can be OEM manufacturing as your requirements.





Product Details

Technical specifications:

Pressure range 0~1Bar~50 BAR
Output signal 0.5~4.5VDC, 4~20mA
Overload pressure 200%FS
Supply voltage 0.5~4.5VDC, 1~5 VDC, 0~10VDC, 4~20mA (2/ 3wires)

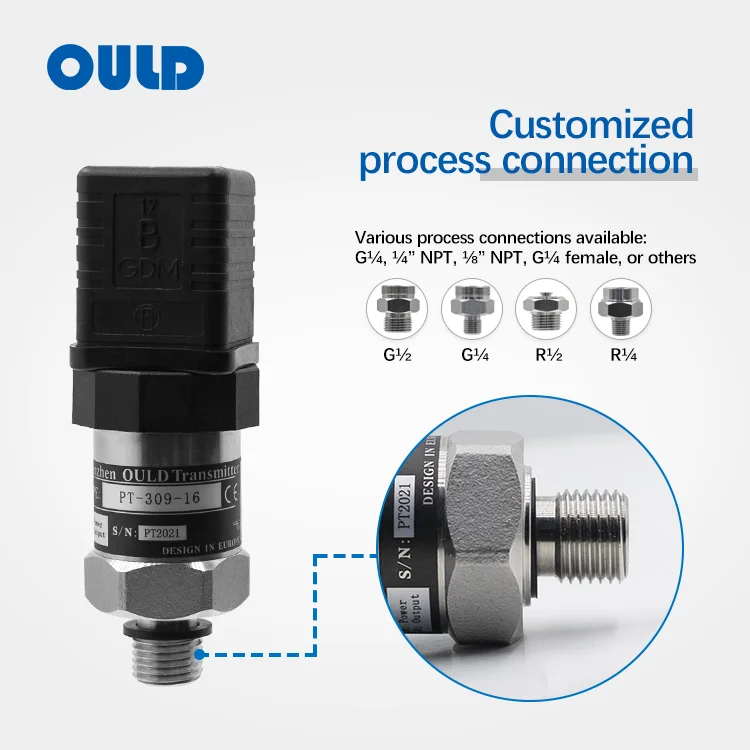

Process connection G1/4, 1/4NPT, R1/4etc, can be customized
Accuracy 0.5%FS
Operating temperature -40℃~125℃
Electrical connection Hirschmann GDM-3009

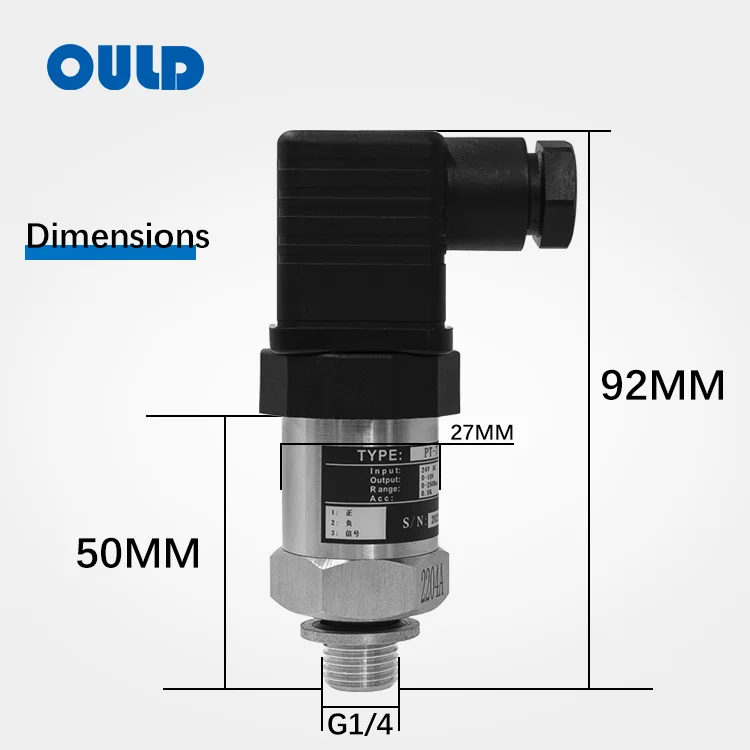

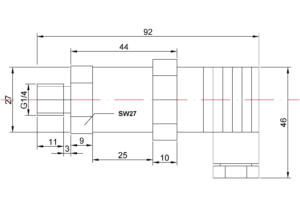

Dimensions (thread can be customized):

Electrical connection:




Output 4~20mA 0~10V 4~20mA (with alarm)
Power supply+ 1Red 1Red 1Red
Current output

/Power supply-

2Black 2Black ④Black
Voltage output 3White
High report 2Yellow
Low report 3Green
