Pressure Sensors & Transmitters in Automotive, EV & Transmission Systems
Modern vehicles and electrified powertrains require precise, real-time pressure monitoring to ensure dynamic efficiency, thermal safety, and smooth shifting. Automotive-grade pressure sensors and transmitters deliver stable performance under extreme temperatures, high vibration, and harsh fluid environments.
Below is an overview of key application scenarios, technical challenges, and selection guidelines for pressure sensing solutions in the automotive and new energy sectors.
Core Applications & Operating Environments
1. New Energy Vehicles (EV/HEV) & Thermal Management
Electric vehicles rely heavily on active thermal management systems to maintain battery packs, power electronics, and electric motors within optimal temperature ranges.
-
Battery Liquid Cooling Loops: Pressure sensors monitor the coolant circulation loop, detecting flow restrictions or pressure spikes to prevent thermal runaway and pump damage.
-
Heat Pump & Refrigerant Systems: High-precision pressure transmitters measure high/low-pressure side refrigerant states (R134a, R1234yf, CO2) to optimize HVAC efficiency and extend driving range.
-
Hydrogen Fuel Cell Vehicles (FCEV): Specialized sensors monitor high-pressure hydrogen storage tanks (up to 70 MPa) and fuel cell stack air/hydrogen supply loops.
2. Automotive Transmission & Drivetrain Systems
Automatic transmissions, Dual-Clutch Transmissions (DCT), and Continuously Variable Transmissions (CVT) rely on hydraulic pressure control to ensure seamless gear transitions.
-
Clutch & Hydraulic Line Monitoring: Transmission pressure sensors provide ultra-fast response times ($<1 ms) to monitor hydraulic line pressure, optimizing clutch engagement and reducing mechanical wear.
-
Electric Axle (e-Axle) Lubrication: Monitors oil line pressure in integrated EV drive units to ensure continuous cooling and lubrication of high-rpm gears and bearings.
-
Key Demands: Media compatibility with aggressive Automatic Transmission Fluid (ATF), high temperature resistance (up to 150℃), and high burst pressure tolerance.
3. Brake & Chassis Systems (Electro-Hydraulic Braking)
Next-generation brake-by-wire and regenerative braking systems require precise hydraulic pressure feedback to blend friction braking with motor energy recovery seamlessly.
-
Key Demands: Extreme reliability, low noise output, and fast signal acquisition.
-
Safety & Compliance: Built to meet ISO 26262 Functional Safety standards (up to ASIL-D) to ensure failsafe braking performance under all driving conditions.
Technology Comparison Table
| Application |
Primary Media |
Measuring Range |
Critical Certification & Standard |
| EV Battery Cooling |
Water-Glycol Coolant |
0 to 5 bar / 500 kPa |
IATF 16949, RoHS/REACH |
| EV Refrigerant Loop |
R1234yf, CO₂ (R744) |
0 to 35 bar / 150 bar |
ISO 16750, IP67/IP69K |
| Transmission (ATF) |
Transmission Fluid |
0 to 30 / 60 bar |
IATF 16949, AEC-Q100 |
| Fuel Cell Hydrogen |
High-Pressure H₂ |
Up to 700 bar (70 MPa) |
EC79 / EIHP, ISO 19880 |

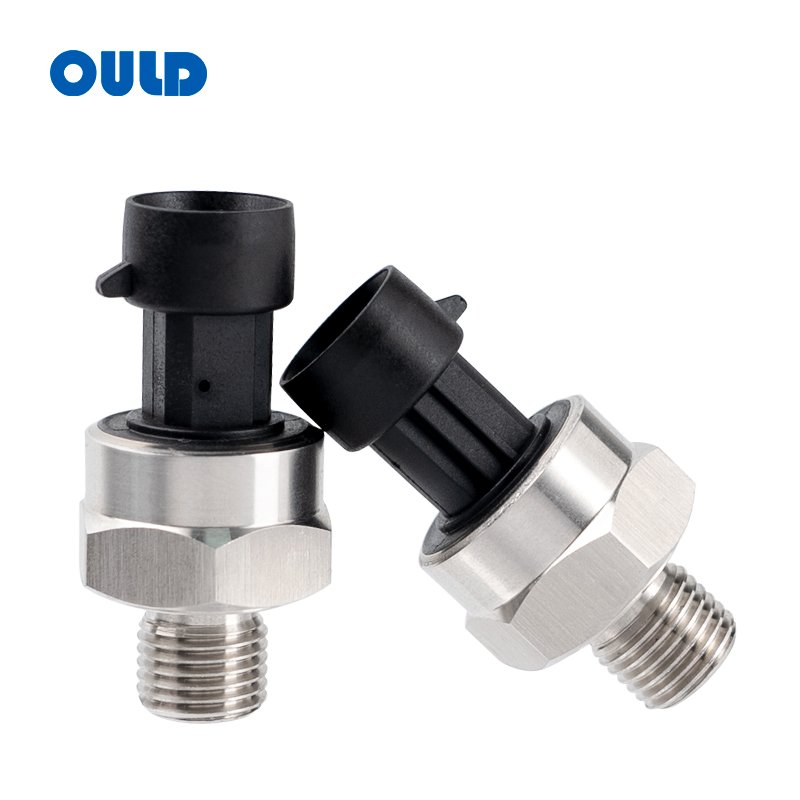

Why Choose Automotive-Grade Pressure Sensors?
-
Harsh Environment Resilience: Designed to withstand heavy mechanical shock, continuous vibration, and thermal thermal shocks from -40℃ to~+125℃(up to +150℃).
-
Advanced Output Signals: Supports standard analog (0.5–4.5V ratiometric), SENT (Single Edge Nibble Transmission), CAN bus, and LIN protocols for direct ECU integration.
-
High EMC/RFI Immunity: Robust shielding against electromagnetic interference from high-voltage EV battery packs and inverters.
FAQ
Q: Why is SENT protocol preferred over analog output in modern automotive pressure sensors?
A: SENT (SAE J2716) provides point-to-point digital signal transmission with higher resolution, built-in diagnostic capabilities, and superior immunity to electromagnetic noise generated by EV power electronics.
Q: Are standard industrial pressure sensors suitable for automotive transmission applications?
A: No. Transmission sensors require automotive-grade qualification (IATF 16949, AEC-Q100/200), specialized ATF-resistant seal materials (FKM/HNBR), and rapid response times that standard industrial sensors cannot match.
