Liquid Level & Pressure Measurement Applications: Water, Seawater, and Fuel Tanks
Accurate liquid level and pressure monitoring are essential for process control, asset protection, and operational safety. Pressure sensors and transmitters provide a robust, non-mechanical solution for continuous hydrostatic level measurement across demanding industrial and marine environments.
Below is an overview of key application scenarios, technical challenges, and selection guidelines for pressure measurement technology.
Core Applications & Operating Environments
1. Water Tank & Reservoir Level Monitoring

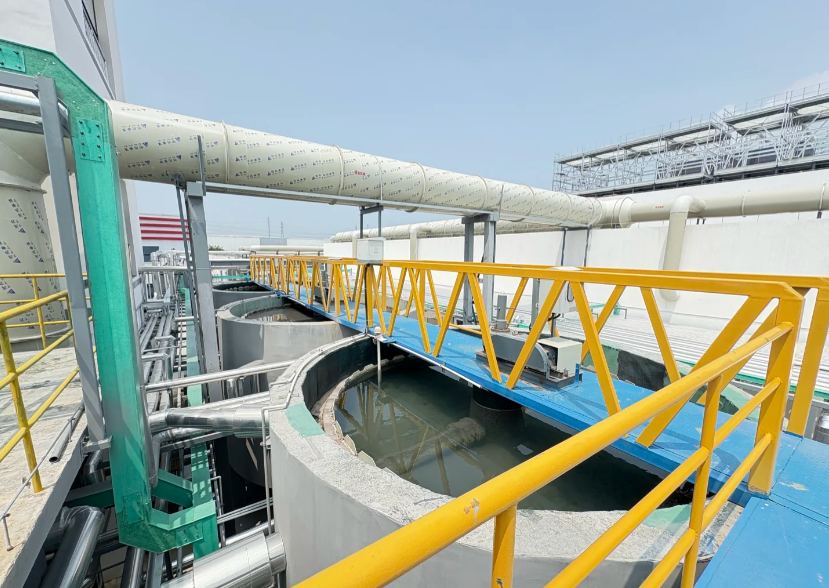

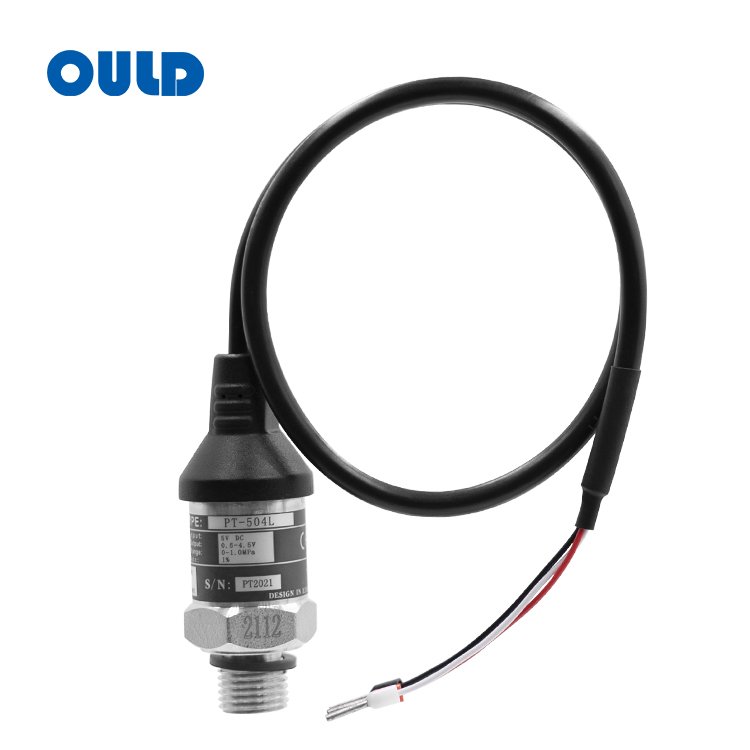

Hydrostatic pressure transmitters are widely deployed in potable water tanks, municipal reservoirs, wastewater lift stations, and industrial water storage.
-
Working Principle: Operating on the hydrostatic principle ($P = \rho \cdot g \cdot h$), the sensor measures the liquid column’s pressure at the bottom of the tank to calculate exact liquid height.
-

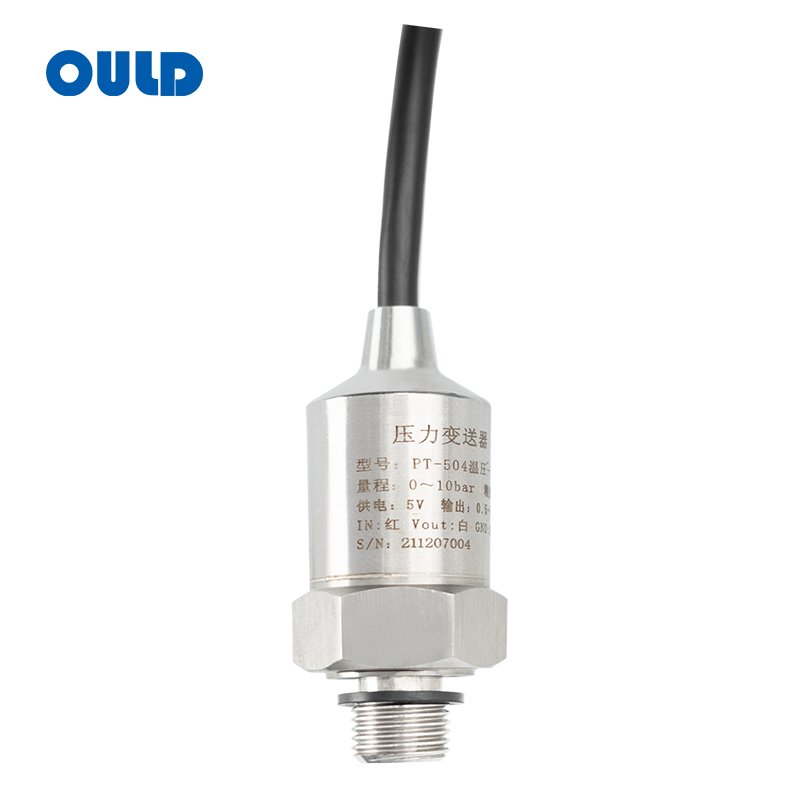

Key Demands: High long-term stability, IP68 ingress protection for submersible units, and drinking water compliance (NSF/WRAS certifications).
-

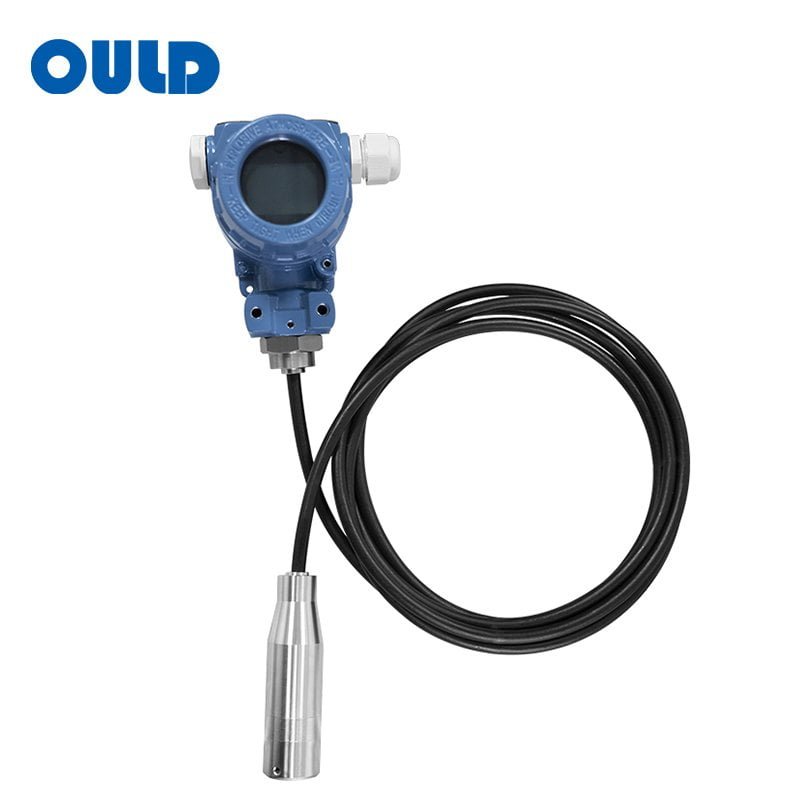

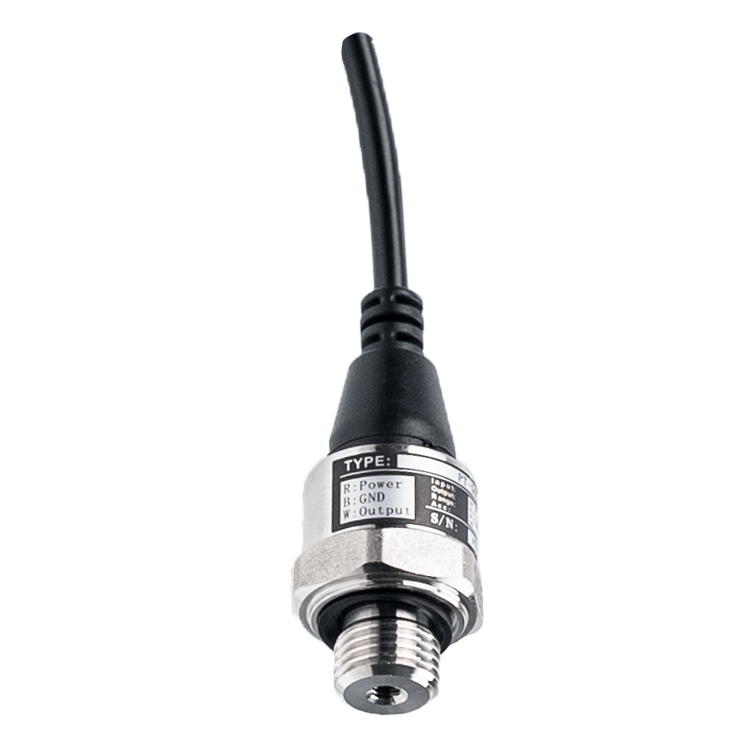

Recommended Solution: Submersible level transmitters with vented polyurethane/PUR cables to compensate for atmospheric pressure changes.
2. Seawater & Marine Applications
Monitoring ballast water, bilge tanks, draft depth, and reverse osmosis (RO) desalination plants requires sensors capable of handling highly corrosive environments.
-
Key Demands: Extreme resistance to pitting corrosion, biofouling, and harsh marine conditions.
-
Material Selection: Standard 316L stainless steel degrades quickly in warm seawater. Marine-grade transmitters utilize Titanium, Hastelloy C, or High-Purity Alumina Ceramics ($Al_2O_3$) for wetted parts, paired with Teflon (PTFE) cabling.
-
Industry Compliance: DNV, ABS, or Lloyd’s Register type approvals for shipboard installation.
3. Fuel & Oil Tank Level Measurement
Fuel storage tanks (diesel, gasoline, heavy fuel oil, and lubricants) present unique chemical compatibility and safety challenges.
-
Key Demands: Explosion-proof safety standards, chemical compatibility with hydrocarbons, and media density compensation.
-
Safety Certifications: ATEX / IECEx Intrinsic Safety (Ex ia) or Explosion-Proof (Ex d) ratings are mandatory for hazardous zone compliance.
-
Design Feature: Fluororubber (FKM) or Kalrez seals paired with piezoresistive silicon or ceramic isolated diaphragms prevent degradation from aggressive additives.
| Application |
Primary Media |
Key Material Requirement |
Signal Output & Protection |
| Water Tanks |
Clean Water / Wastewater |
316L SS, Ceramic, PUR Cable |
4-20mA / RS485 Modbus, IP68 |
| Seawater / Marine |
Saltwater, Brine, Ballast |
Titanium, Hastelloy C, PTFE |
4-20mA, DNV/ABS Marine Approved |
| Fuel & Oil Tanks |
Diesel, Gasoline, Oil |
316L SS, Viton/FKM, FEP Cable |
4-20mA, ATEX/IECEx Intrinsically Safe |

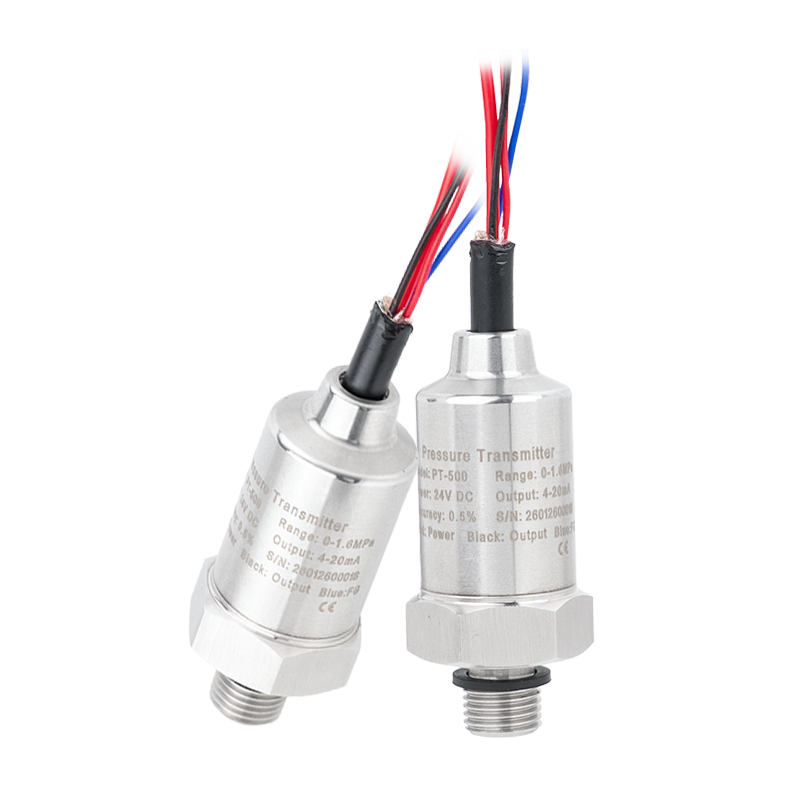

Why Choose Pressure Transmitters over Mechanical Floats?
-
No Moving Parts: Eliminates mechanical wear, clogging, or jamming from debris and algae.
-
Continuous Monitoring: Delivers real-time 4-20mA or digital (HART, Modbus) level data rather than single-point switch signals.
-
Versatile Mounting: Supports top-drop submersible installation or side-mount threaded/flanged process connections.
FAQ
Q: How does liquid density affect hydrostatic pressure measurement?
A: Hydrostatic pressure is directly proportional to liquid density. Since diesel ($\approx 0.85 \text{ g/cm}^3$) is less dense than water ($\approx 1.0 \text{ g/cm}^3$), the transmitter must be calibrated to the specific gravity of the target media to ensure accurate height calculations.
Q: Can pressure transmitters be used in pressurized closed tanks?
A: Yes. For pressurized tanks, Differential Pressure (DP) transmitters are used to measure the difference between the bottom liquid pressure and the top vapor space pressure, cancelling out tank pressure.
