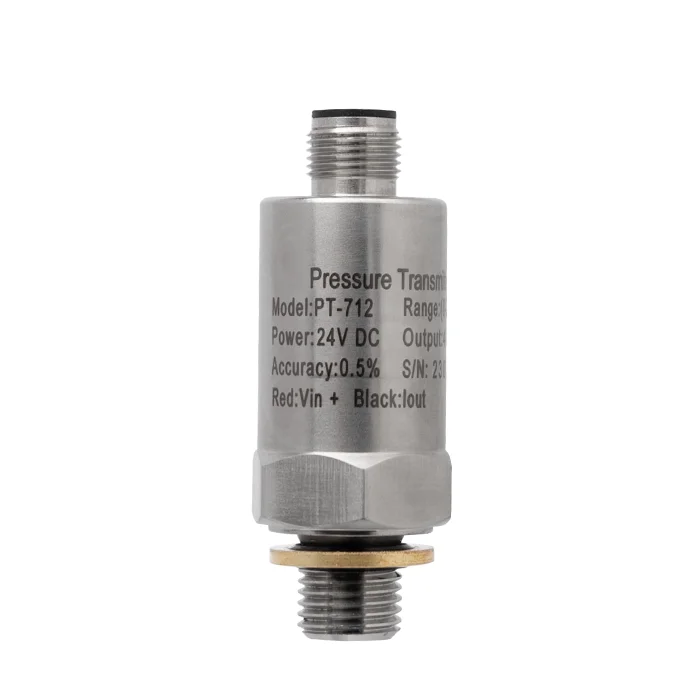

Industrial Pressure Transmitter PT-712

Industrial Pressure Transmitter | 7 Series | 4-20 m A | 0-10 VDC

Pressure Range
0 bar~100 bar~600 bar
Accuracy
±0.5% FS
Output Signal
4~20mA, 0~10VDC
Process Connection
G1/4, G1/2, Custom
Electrical Connection
M12
Supply Voltage
--
Ordering & Supply
MOQ (Minimum Order Quantity)
1 pcs
Lead Time
7-15 working days (standard)
Supply Capacity
50,000 pcs / month
Customization
Range / Output / Thread / Material
Product Description
PT 712

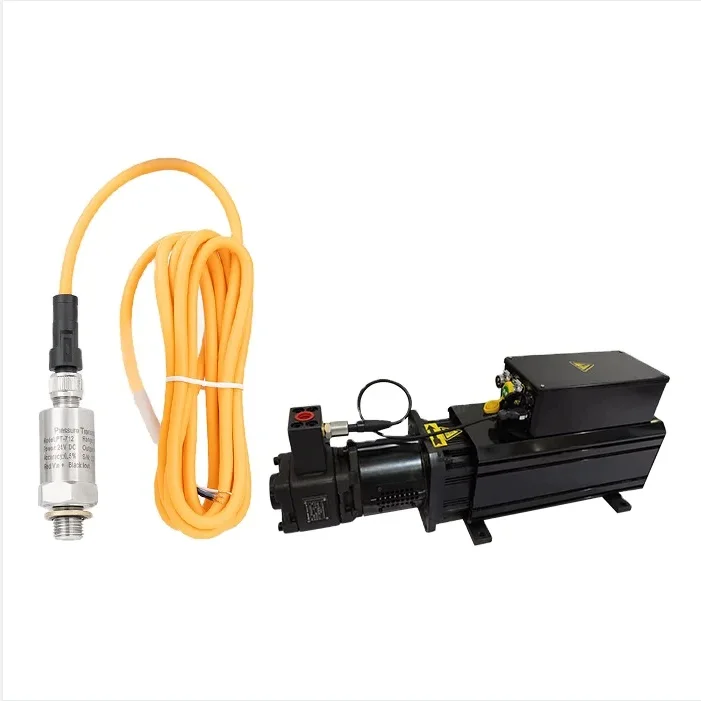

PT-712 pressure transmitter adopts imported sensor core, stainless steel isolated small structure, compact appearance, easy installation. This product is particularly suitable for a large range of use, has good stability, wide temperature range, service life of more than 10 million times, widely used in injection molding machines and engineering machinery. It has CE certification and can directly replace a variety of similar imported products. OEM manufacturing can be carried out as required.



Product Details

Technical Parameters:

Range 0MPa~0.1MPa~60MPa
output signal 4-20mA, 0-10VDC
Overload pressure 200%FS, 150%FS (above 20MPa)
Supply voltage 24VDC (10~30VDC)

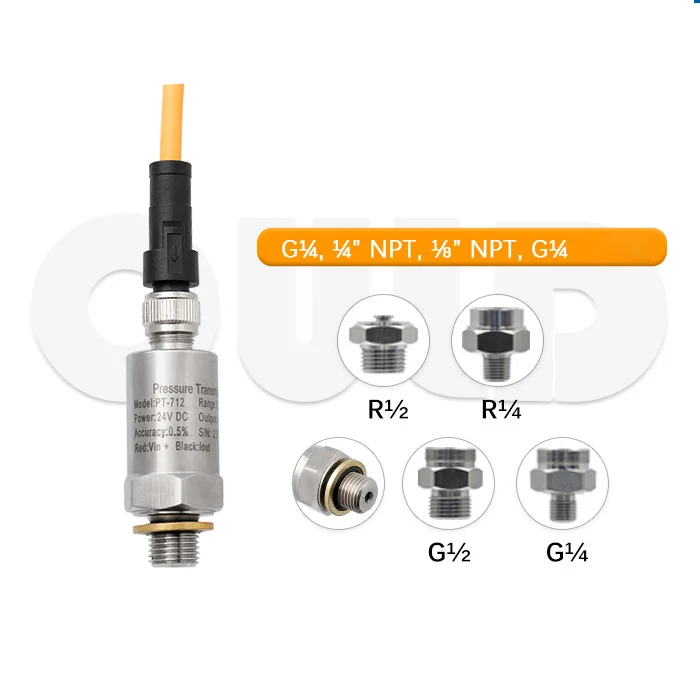

Process connection G1/4,R1/4,customizable
Comprehensive accuracy ±0.25%FS, ±0.5%FS
Operating temperature -40℃-85℃
Temperature drift ±0.03%FS/℃
Protection level IP65

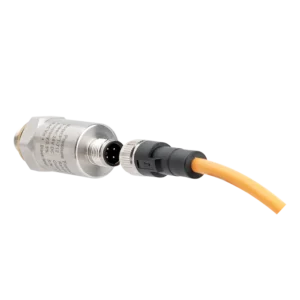

Electrical connections M12 industrial plug

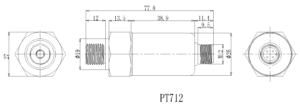

Dimensions (can be customized as needed):

PT-712 Industrial Pressure Transmitter - Industrial Pressure Transmitter

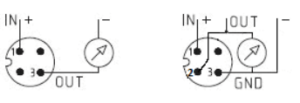

Electrical connections:

PT-712 Industrial Pressure Transmitter - Industrial Pressure Transmitter

output method 420mA 010V
Power+ brown brown
Voltage output White
Current Output/Power Supply – blue blue
