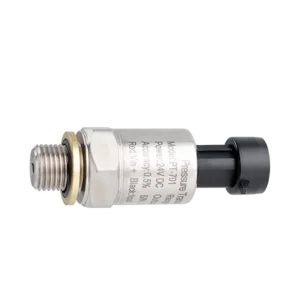

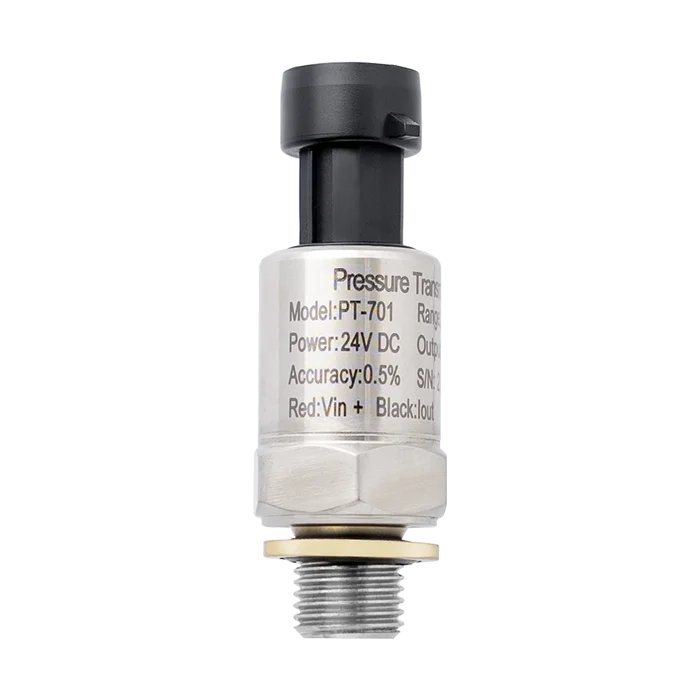

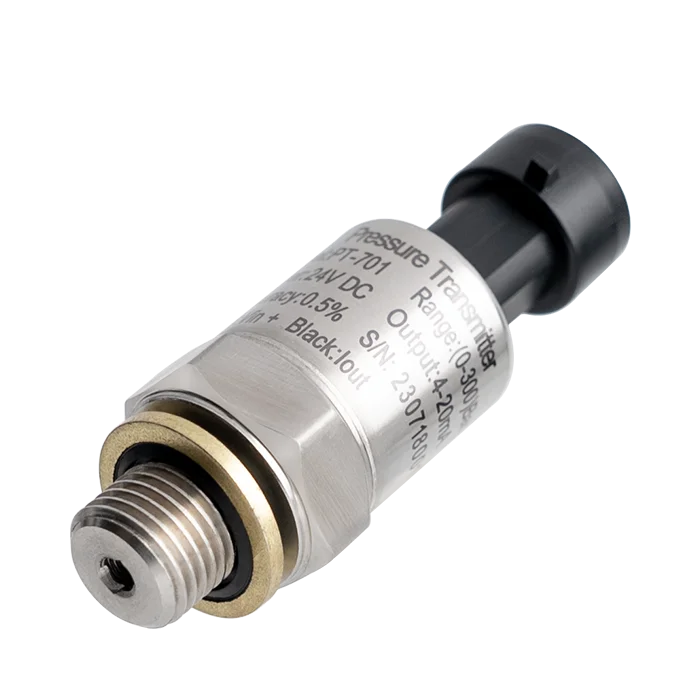

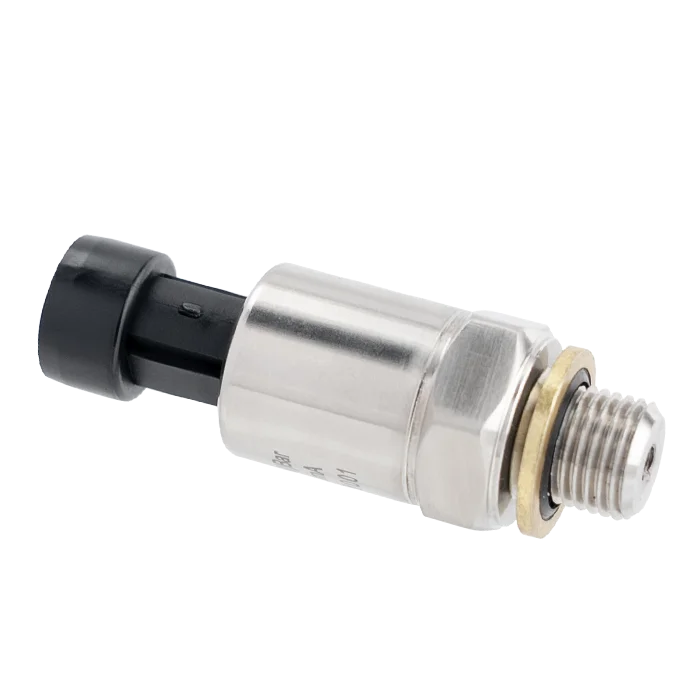

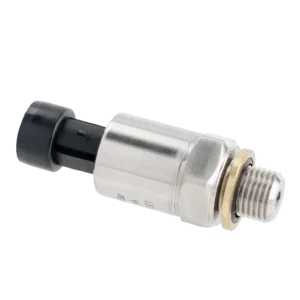

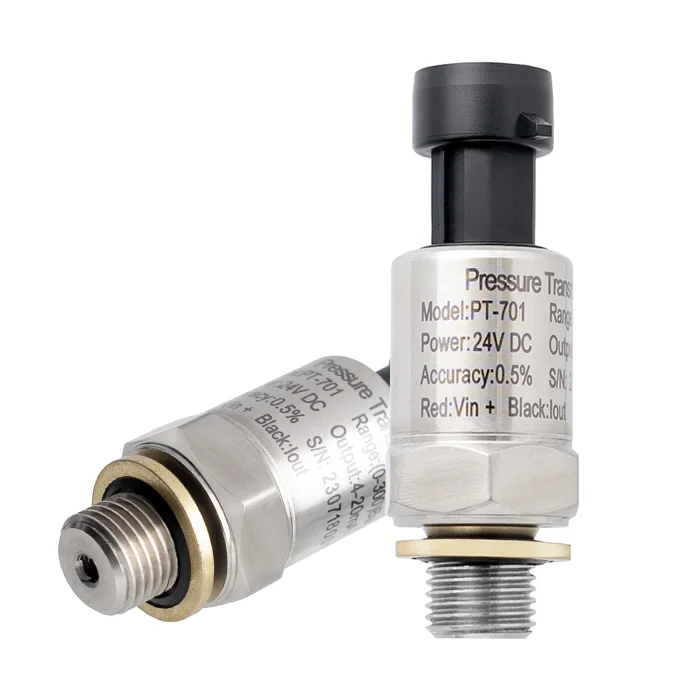

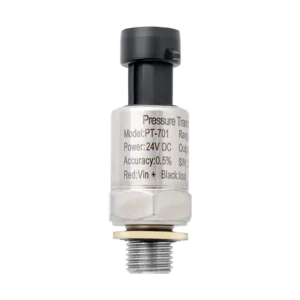

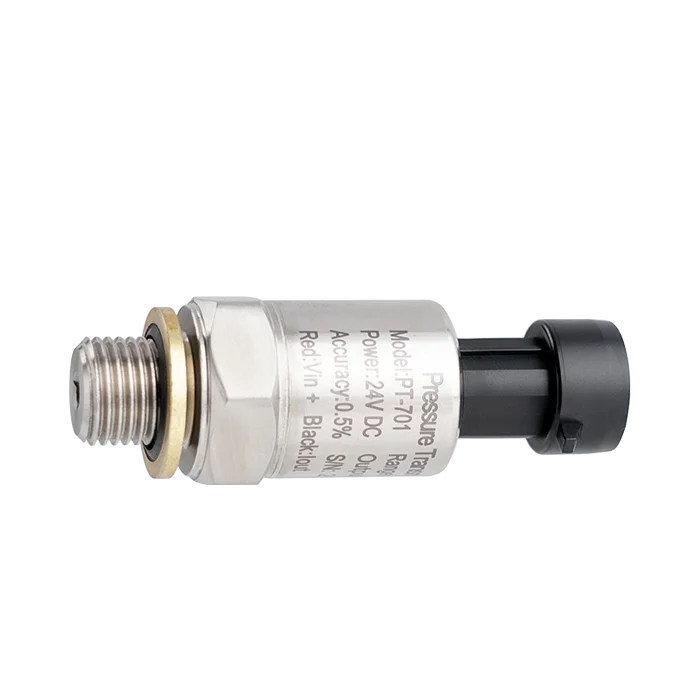

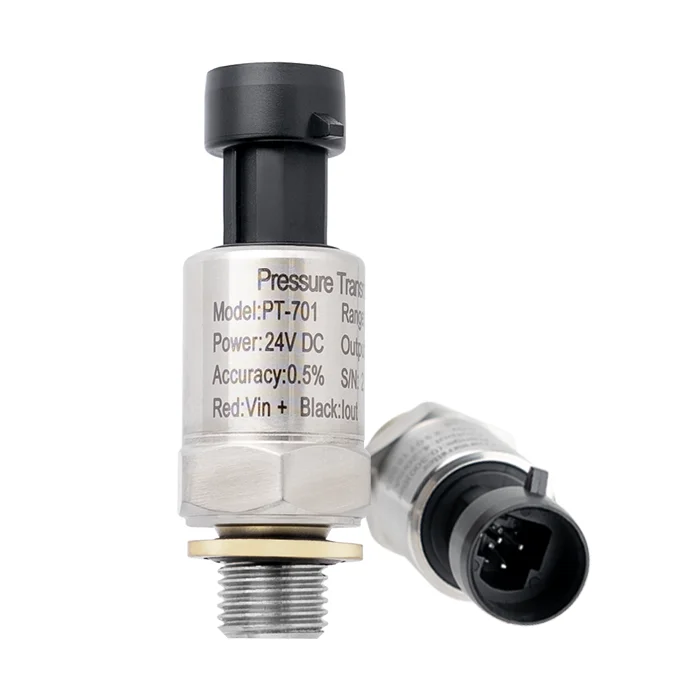

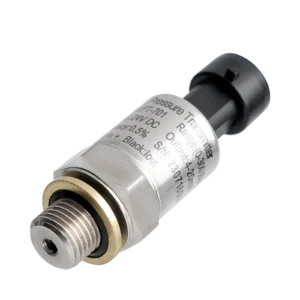

Industrial Pressure Transmitter PT-701

Industrial Pressure Transmitter | 7 Series | 4-20 m A

Pressure Range

Custom

Accuracy

±0.5% FS

Output Signal

4~20mA, 0~5VDC, IIC, NTC 10K 3950

Process Connection

G1/4, R1/4, Custom

Electrical Connection

Packard

Supply Voltage

5 VDC, 11~36 VDC

Ordering & Supply

MOQ (Minimum Order Quantity): 1 pcs
Lead Time: 7-15 working days (standard)
Supply Capacity: 50,000 pcs / month
Customization: Range / Output / Thread / Material

Download Datasheet Request Quote Get Sample

Product Description

PT-701 pressure transmitter is a pressure transmitter developed by our company according to market needs. This product is widely used in a wide range of fields such as petroleum, chemical industry, metallurgy, shipbuilding, injection molding machines and engineering machinery. It has full temperature compensation, good electrical performance and long-term stability.

Product Details

Technical Parameters:

Range	0～100…600Bar
Overload pressure	2～1.25*FS%
Pressure Type	Gauge pressure
Process connection	G1/4, R1/4, etc., customizable
Comprehensive accuracy	±0.5% FS
Temperature compensation range	-10～70℃
Long-term stability	±0.3%FS/year
Operating temperature	-40～85℃
Storage temperature	-40～125℃
Supply voltage (DC)	12-36V
Output signal	4-20mA; 0-10V
Load resistance	50 (U-10) Ω [4-20mA], greater than 10KΩ [V]
Electrical Connections	Parker plug
Protection level	IP65
Material	Sensor: ceramic; Shell: stainless steel 304 or SS316; Socket: PVC; Waterproof ring: nitrile rubber
Medium adaptability	Various fluids that are non-corrosive to 304 stainless steel and nitrile
vibration	10gRMS, (20～2000)Hz
Shock	100g, 11ms
insulation	More than 100MΩ @250VDC
Response time	Less than 1ms (@ 90% FS)
CE certification	EMC: IEC61326-1 Class B Electrostatic discharge immunity: IEC61000-4-2 Electromagnetic field immunity: IEC61000-4-3 EFT immunity: IEC61000-4-4 Surge immunity: IEC61000-4-5

Dimensions (mm):

Process connections can be customized

PT-701 Industrial Pressure Transmitter - Industrial Pressure Transmitter

plug	Wiring	Voltage output	Current output
1	red	Power supply positive VCC	Power supply positive VCC
2	black	Power negative GND	Current output Iout
3	white	Signal output Vout	NC

Related Products

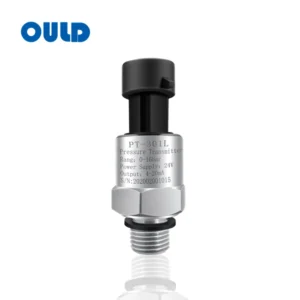

Ceramic Pressure Transmitter with 4-20mA Output - High Precision Industrial Pressure Sensor (PT-301L)
