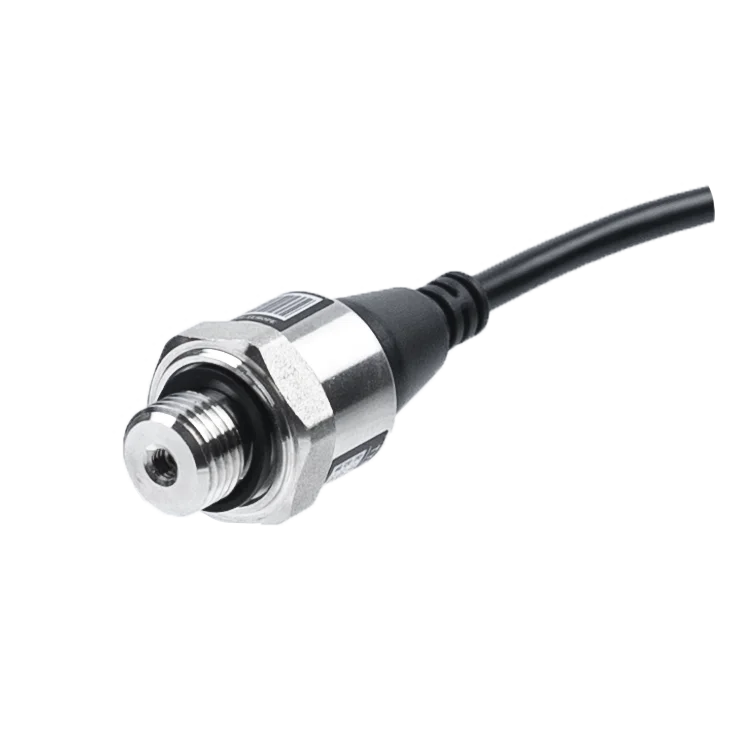

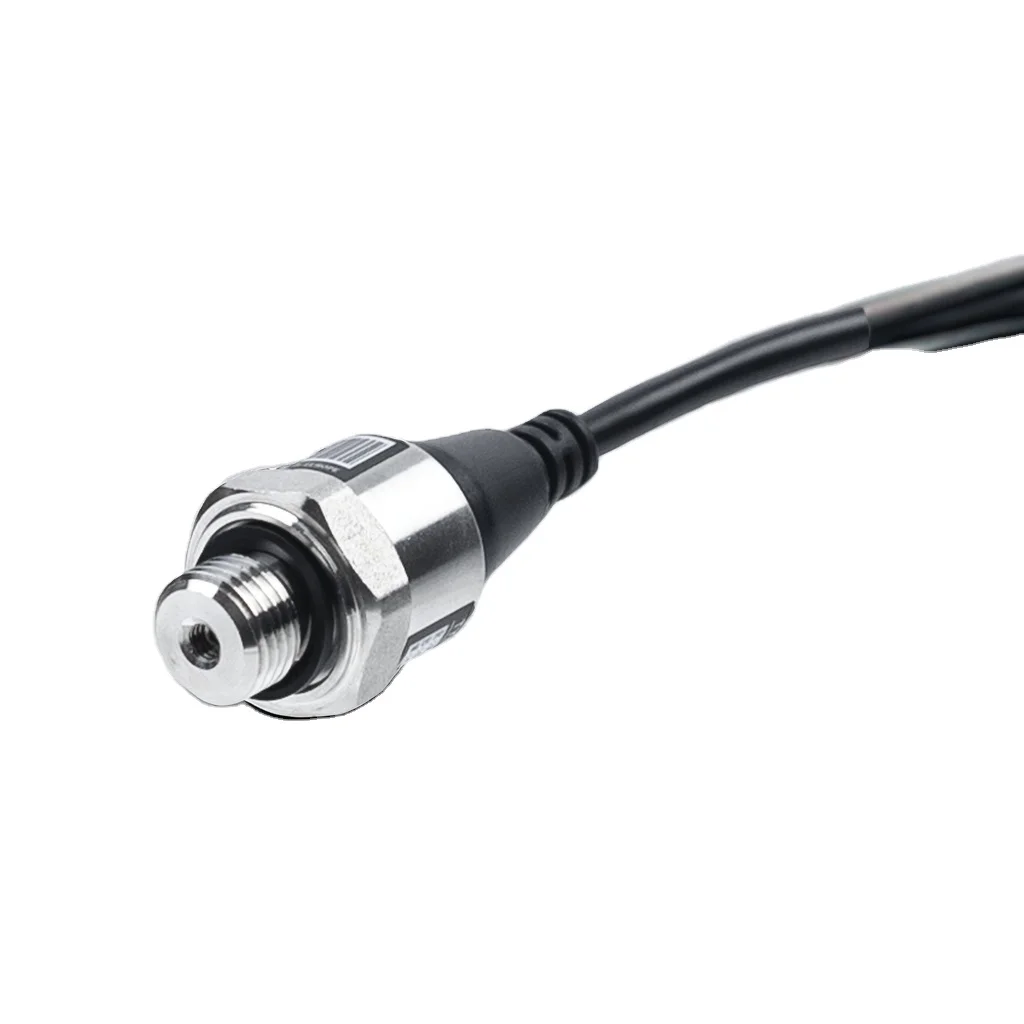

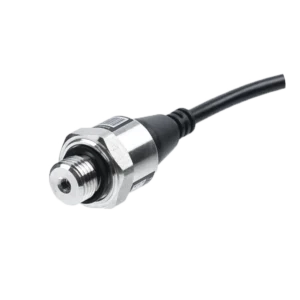

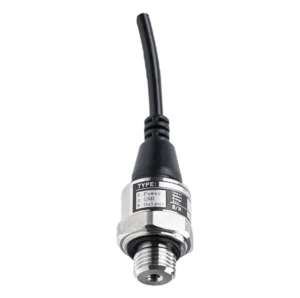

Water Treatment Pressure Transmitter PT-505

Industrial Pressure Transmitter | 5 Series | 0-5 V | for injection-molded cable end with ip 68 protection rating

Pressure Range
-100kPa…0~100kPa…50bar
Accuracy
±0.5% FS, ±1.0% FS
Output Signal
4~20mA, 0~5VDC
Process Connection
G1/4, R1/4, can be customized
Electrical Connection
Cable
Supply Voltage
3~5 VDC, 10~36 VDC
Ordering & Supply
MOQ (Minimum Order Quantity)
1 pcs
Lead Time
7-15 working days (standard)
Supply Capacity
50,000 pcs / month
Customization
Range / Output / Thread / Material
Product Description
PT-505 Water Treatment Pressure Transmitter - Industrial Pressure Transmitter

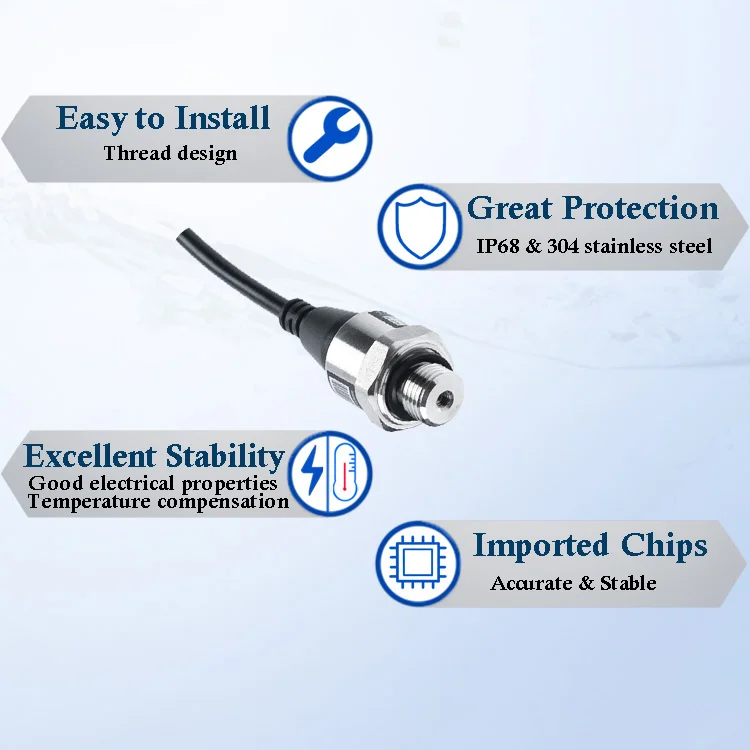

PT-505 pressure transmitter is a specialized product developed to meet the needs of the water treatment industry. It is widely used in applications such as variable frequency pumps, integrated water supply systems, HVAC, petroleum, chemical, metallurgy, marine, medical equipment, vehicles, refrigeration units, compressors, and water pumps. With professional water hammer protection and fully waterproof injection-molded cable end, it has become the preferred choice in its class and can directly replace well-known branded products.



Product Details

Technical Parameters:

Pressure range -100kPa~0~100kPa~50bar
Overload pressure 200%FS
Pressure type Gauge
Accuracy ±0.5%FS
Temperature compensation range -10~70℃
Temperature shift ±0.03%/℃
Long-term stability ±0.3%FS/year
Working temperature -40~85℃
Storage temperature -40~125℃
Output signal 0-5V IIC
Power supply DC 3-5.5V or 10-36V 2.7-5.5V
Load resistance(Ω) >10K (Voltage type)
Electrical connection Leads/ terminal
Ingress IP68
Process connection G1/4, R1/4 etc. customizable
Material Housing: 304 stainless steel; Cable: PVC; Waterproof ring: NBR
Medium adaptability Non-corrosive liquids to 304 stainless steel



Vibration 10gRMS,(20~2000)Hz
Impact 100g,11ms
Insulation More than 100MΩ @250VDC
Response time Less than 1ms(@ 90%FS)
CE Approval EMC: IEC61326-1 B type

Electrostatic discharge immunity:IEC61000-4-2

Electromagnetic field immunity:IEC61000-4-3

EFT immunity:IEC61000-4-4

Surge immunity:IEC61000-4-5

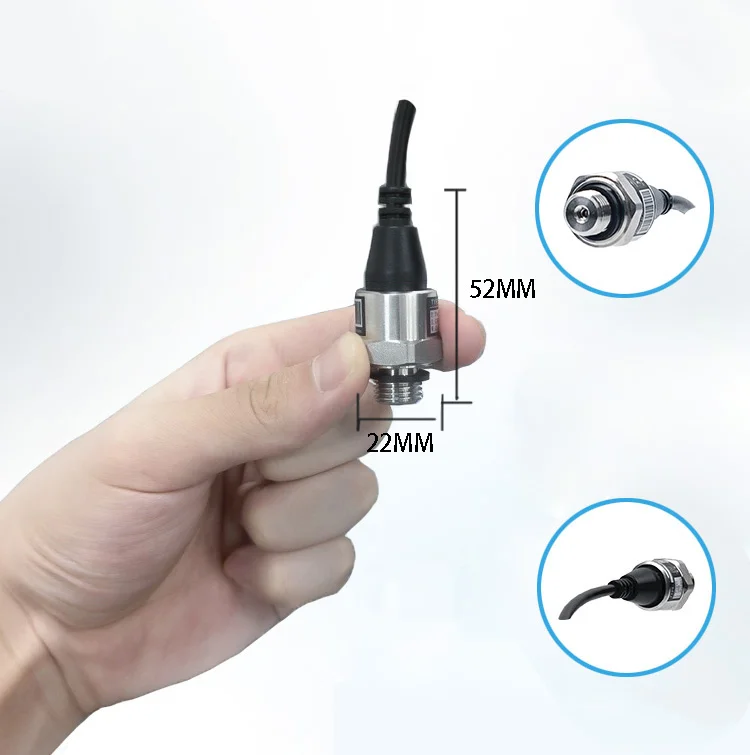

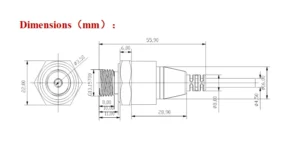

Dimensionsunit mm

PT-505 Water Treatment Pressure Transmitter - Industrial Pressure Transmitter

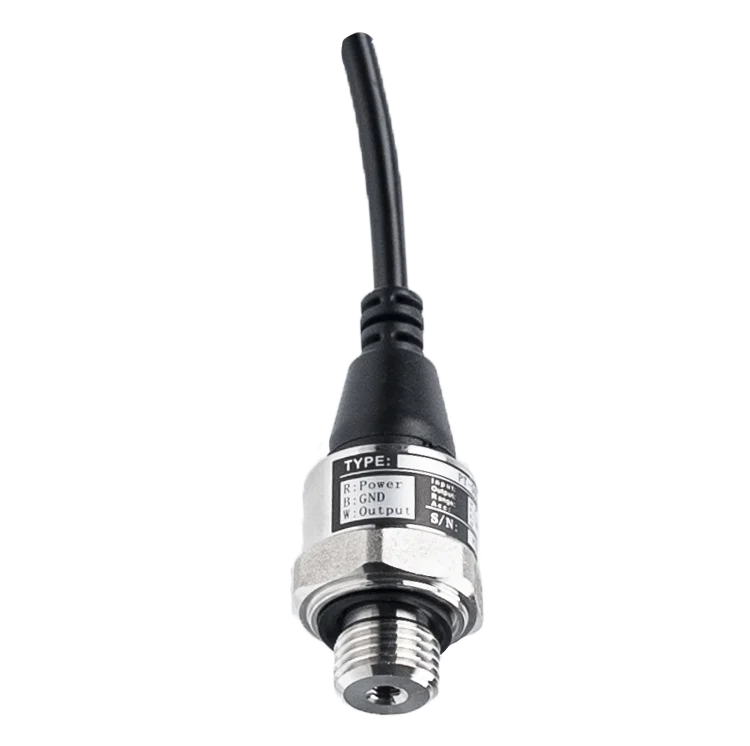

Electrical connections:
Output signals 3 wires IIC
1/Red Vin Vin
2/Black GND GND
3/White Out SCL
4/Yellow NC SDA
